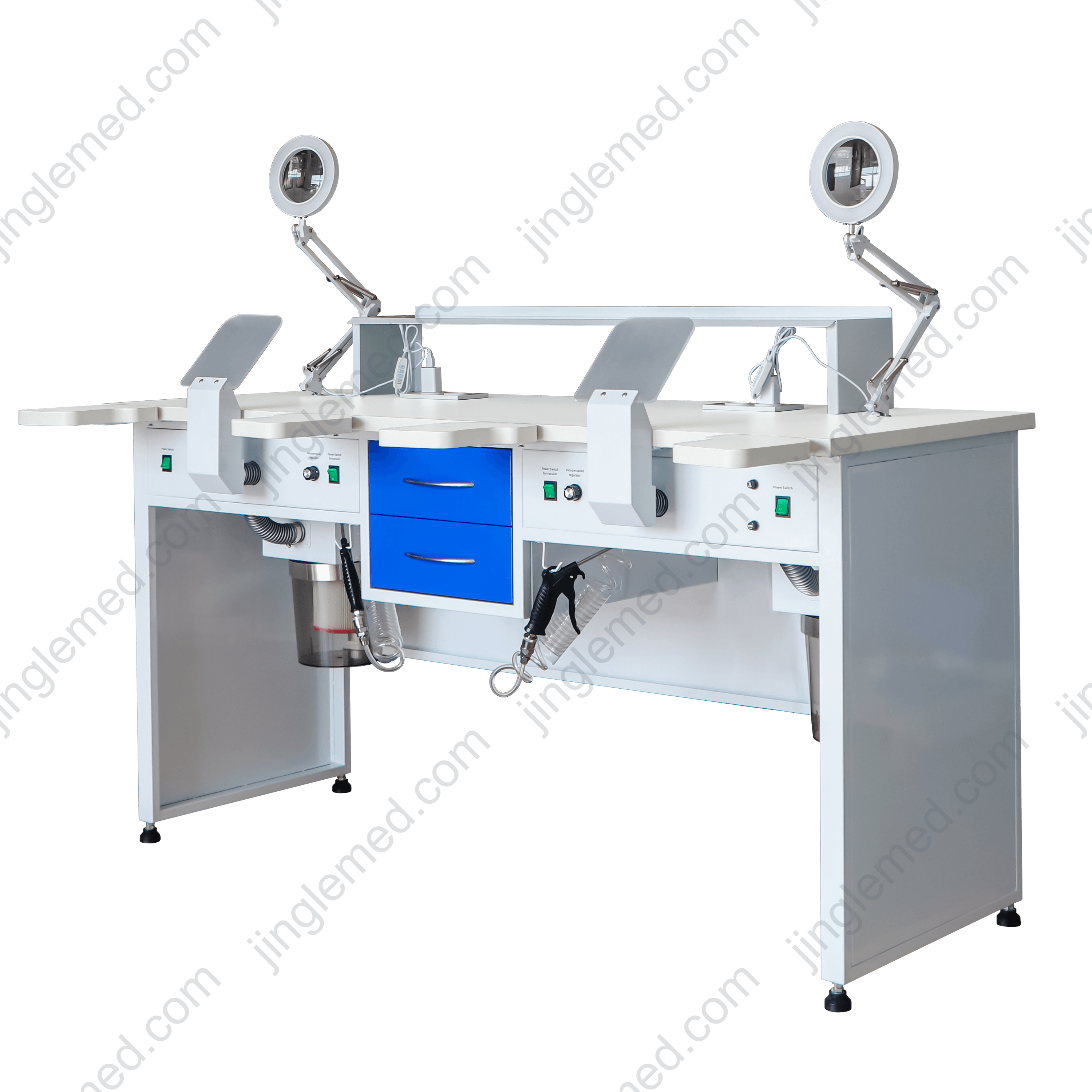

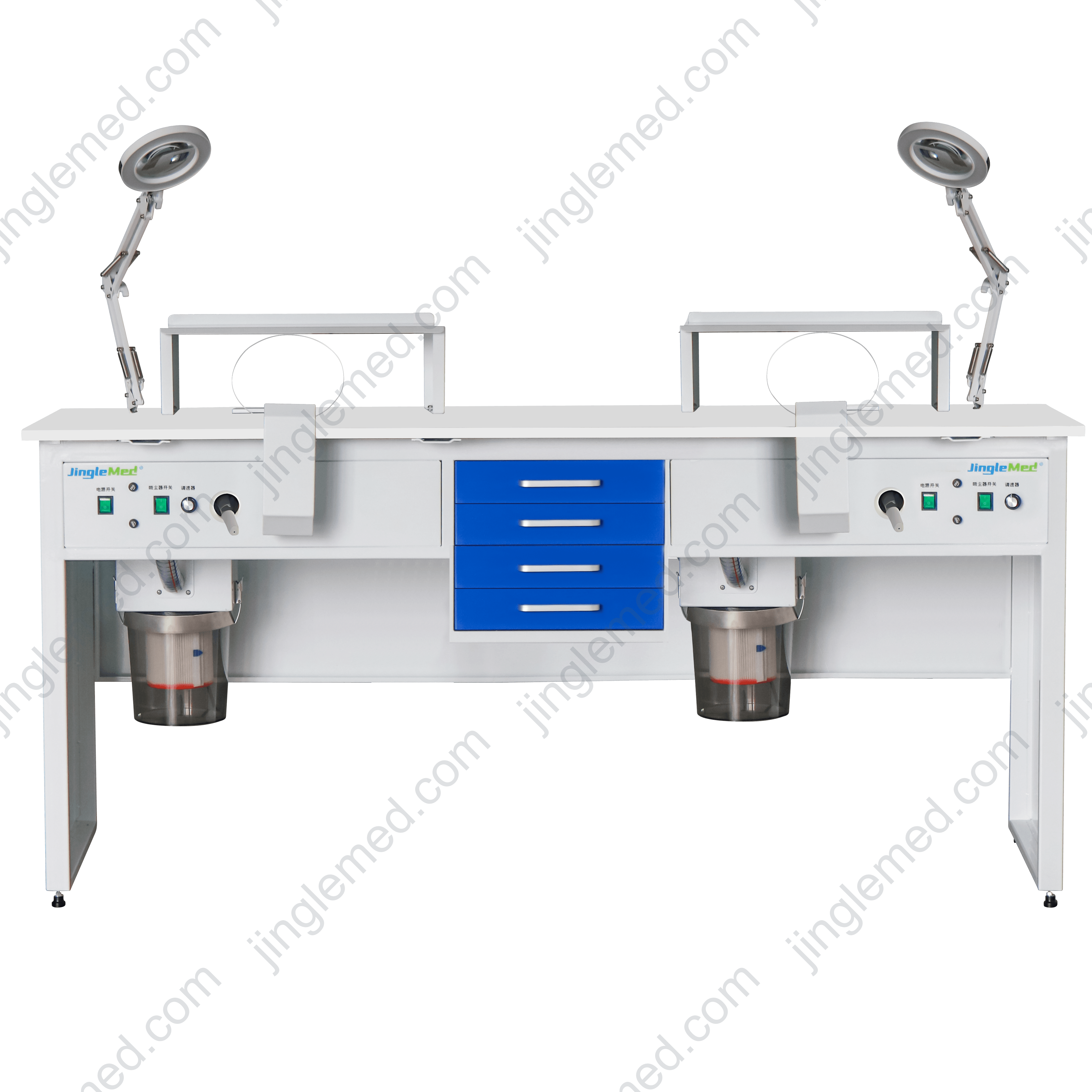

The JG-J2 is a customizable double-station dental lab workstation designed for commercial laboratories, denture production centers, dental schools, technician training facilities and clinic in-house labs. Its standard configuration combines a stainless steel body, an engineered stone worktop and two independent built-in dust extraction systems, providing two coordinated workstations for dental technicians or trainees.

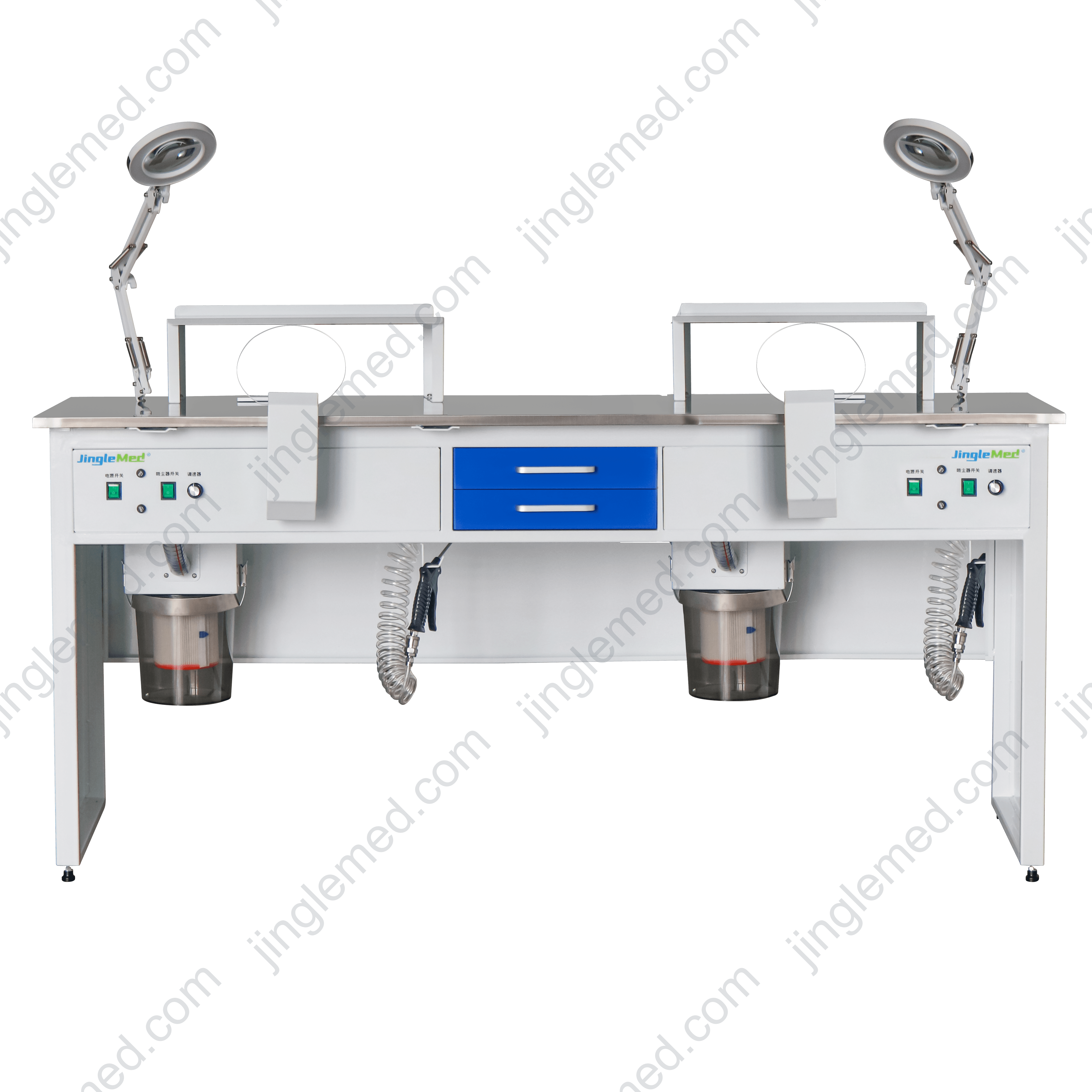

The reference size is 1800 × 600 × 1060 mm (W × D × H). Dimensions, worktop height, drawer layout, body material, worktop material and electrical configuration can all be tailored to the confirmed order.
| Model | JG-J2 |
| Workstation type | Double-station dental lab workstation |
| Reference dimensions | 1800 × 600 × 1060 mm (W × D × H), customizable |
| Standard body material | Stainless steel |
| Standard worktop | Engineered stone |
| Standard electrical supply | 220 V / 50 Hz |
| Optional electrical supply | 110 V / 60 Hz and destination-specific plugs or sockets |
| Dust extraction quantity | Two independent built-in systems |
| Dust extraction motor power | 370 W per system |
| Maximum negative pressure | ≤9.8 kPa per system |
| Maximum airflow | 70 m³/h per system |
| Maximum noise | ≤60 dB |
| Compressed-air requirement | External source, approximately 0.55 MPa |
| Air compressor | Not included; available separately |
| Work lights | Two LED dental technician work lights; styles customizable |
| Body options | Stainless steel or powder-coated cold-rolled steel; custom colors available for applicable configurations |
| Worktop options | Engineered stone, stainless steel or melamine-faced panel |
| Dimensions | Width, depth, height and worktop height can be customized |
| Storage | Drawer quantity and layout can be customized |
| Electrical | Voltage, frequency, plugs and sockets can be configured for the destination market |
| Additional equipment | Turnover bins, plaster saws and a separate air compressor can be supplied as options |
For dental education projects, the JG-J2 can be configured as part of a customized training station. An optional monitor can display an instructor’s live demonstration through an HDMI splitter or LAN-based distribution setup. An optional oral light can illuminate the oral cavity of a phantom head, and a camera-enabled oral light is also available for recording or demonstration requirements.
The monitor, oral light, phantom head and dental simulator are optional integration components and are not included in the standard JG-J2 configuration.
JingleMed operates its own hardware processing facility and can customize workstation dimensions, body and worktop materials, colors, drawer layouts, electrical configurations, logos, packaging and manuals according to project requirements. Monitor and oral-light integration can also be planned for compatible dental training systems.
Yes. The JG-J2 is a double-station platform. Dimensions, worktop height, drawer layout, body and worktop materials, electrical configuration and compatible accessories can be tailored to the confirmed project.
Two independent built-in dust extraction systems are included in the standard configuration, with one system assigned to each workstation.
The standard configuration uses a stainless steel body and an engineered stone worktop. A powder-coated cold-rolled steel body, custom colors, stainless steel worktop and melamine-faced panel worktop are available as options.
No. The workstation connects to an external compressed-air source of approximately 0.55 MPa. A separate compressor can be supplied as an option.
Yes. The standard supply is 220 V / 50 Hz. A 110 V / 60 Hz version and destination-specific plugs or sockets can be configured according to the confirmed order.
No. They are optional integration components for compatible phantom-head or dental-simulator training projects.
Send us your required dimensions, preferred body and worktop materials, drawer layout, electrical standard and any training-system integration needs. JingleMed will prepare a customized JG-J2 configuration for your project.
