The JG-K2401-08 dental air compressor series supplies compressed air for dental chairs and dental simulation units. Eight models offer 32–300 L tanks and listed air flow rates of 130–1,470 L/min, with voltage options varying by model. Select a model to match your equipment requirements and simultaneous air demand.
This oil-free air compressor series can be used with dental chairs and dental simulation units. The range includes eight models with tank capacities from 32 to 300 L, providing a wider choice of air supply configurations for installations with different capacity requirements. Compatibility depends on the pressure, air flow, connections and air quality requirements of the connected equipment.
| Model | Power | Air flow | Tank volume | Rated voltage | Noise |
|---|---|---|---|---|---|

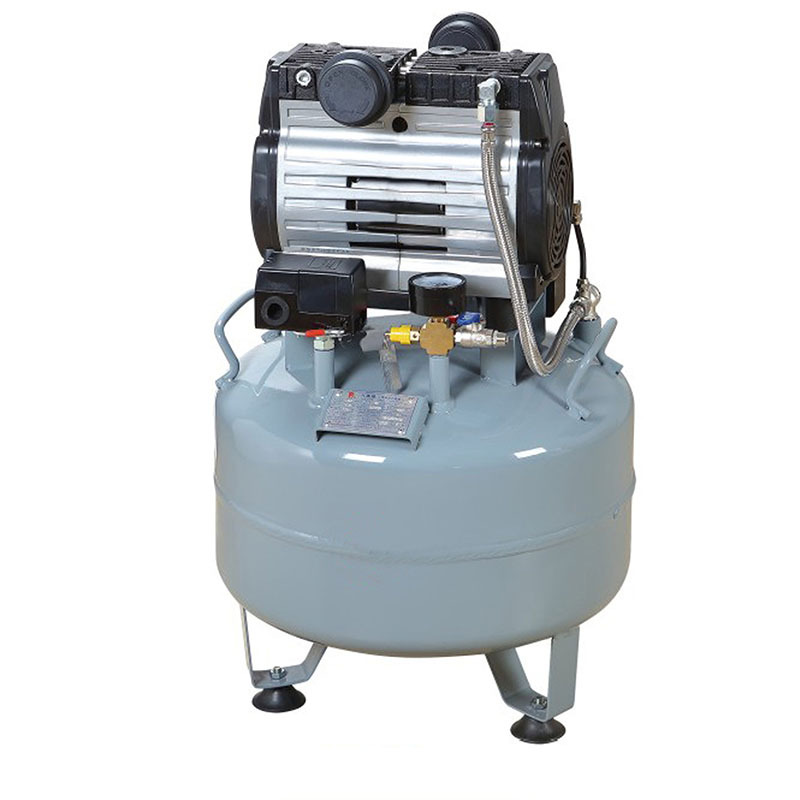

| 2401 | 900W | 130L/min | 32L | 220VAC 50Hz | 62dB |

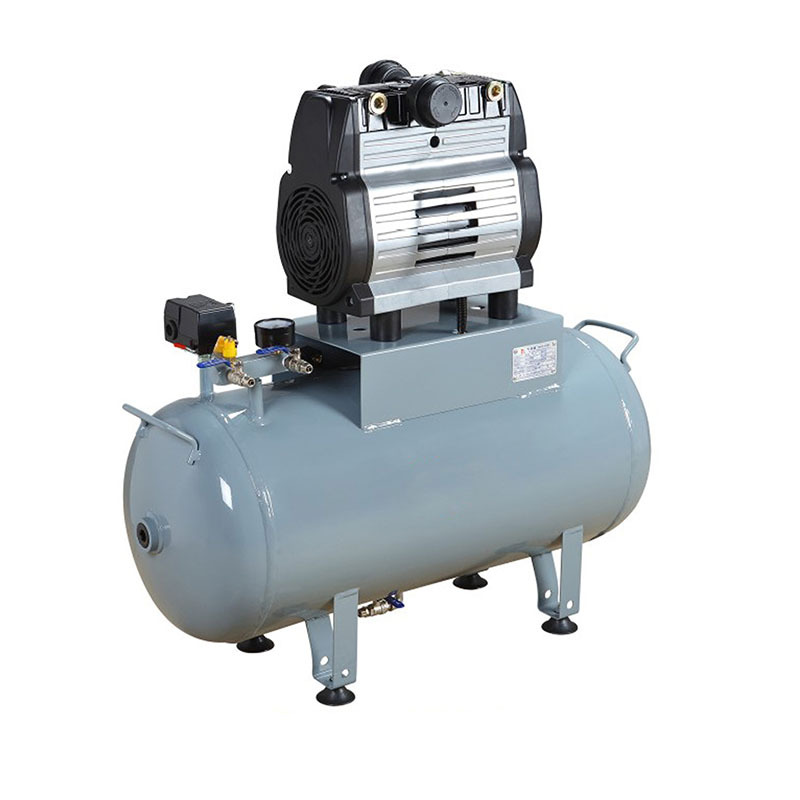

| 2402 | 1800W | 280L/min | 60L | 220VAC 50Hz | 65 dB |

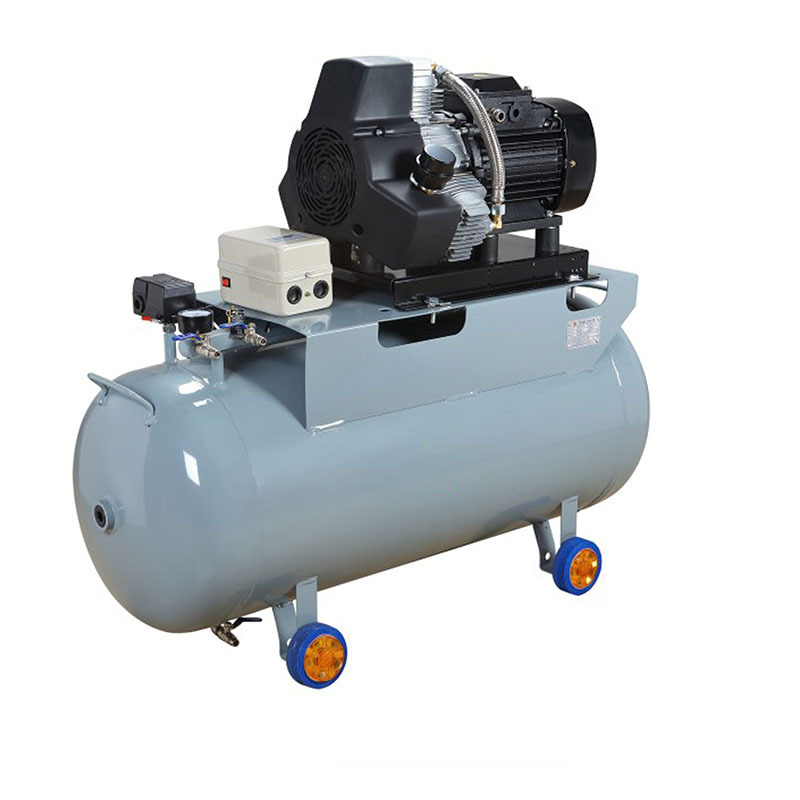

| 2403 | 2200W | 400L/min | 128L | 220VAC 50Hz | 75 dB |

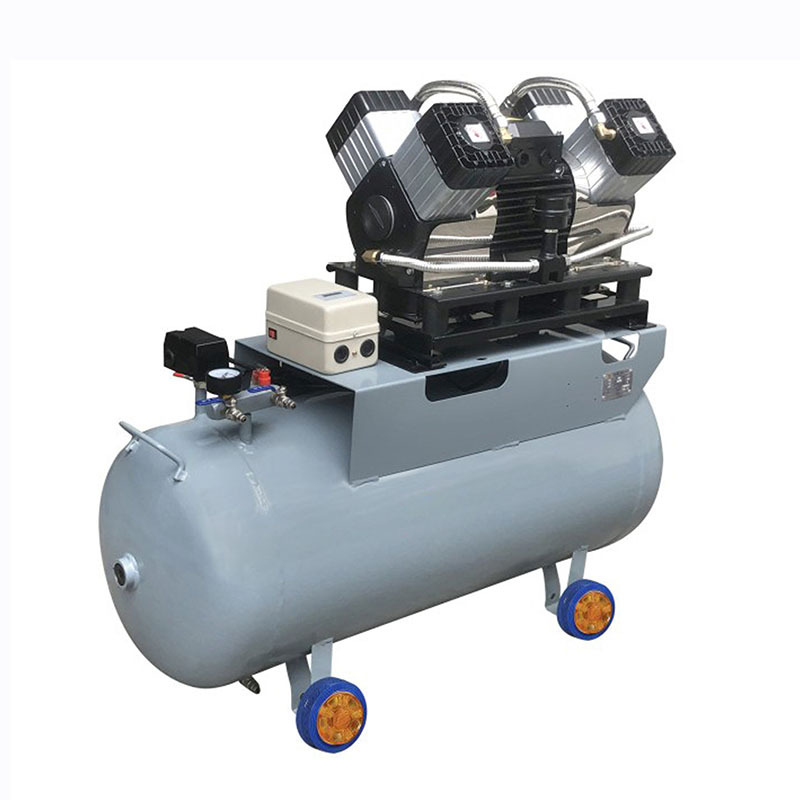

| 2404 | 3000W | 490L/min | 128L | 380VAC 50Hz | 75 dB |

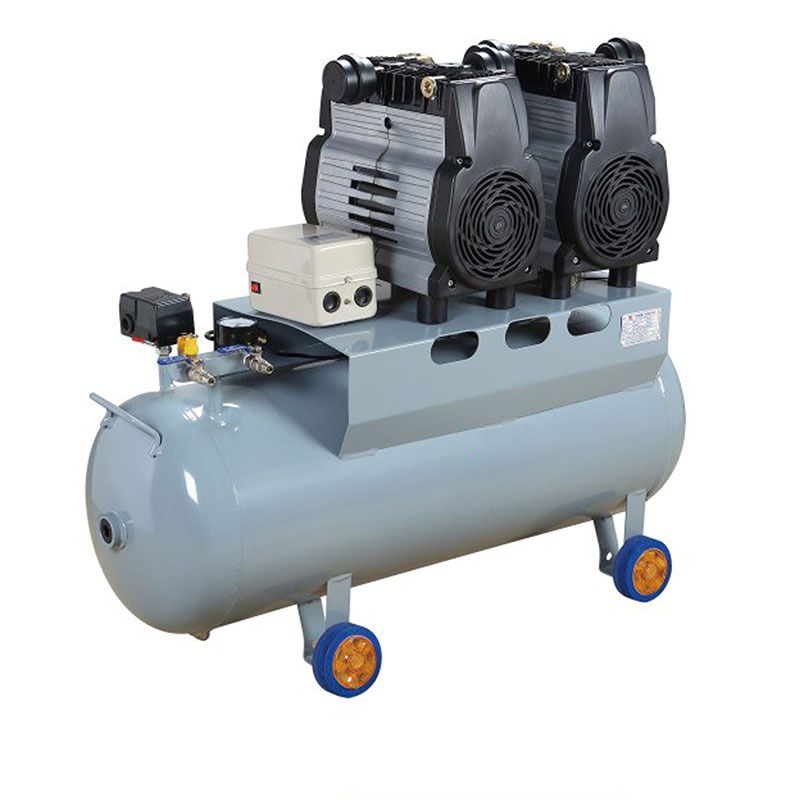

| 2405 | 3600W | 560L/min | 128L | 220VAC 50Hz | 76 dB |

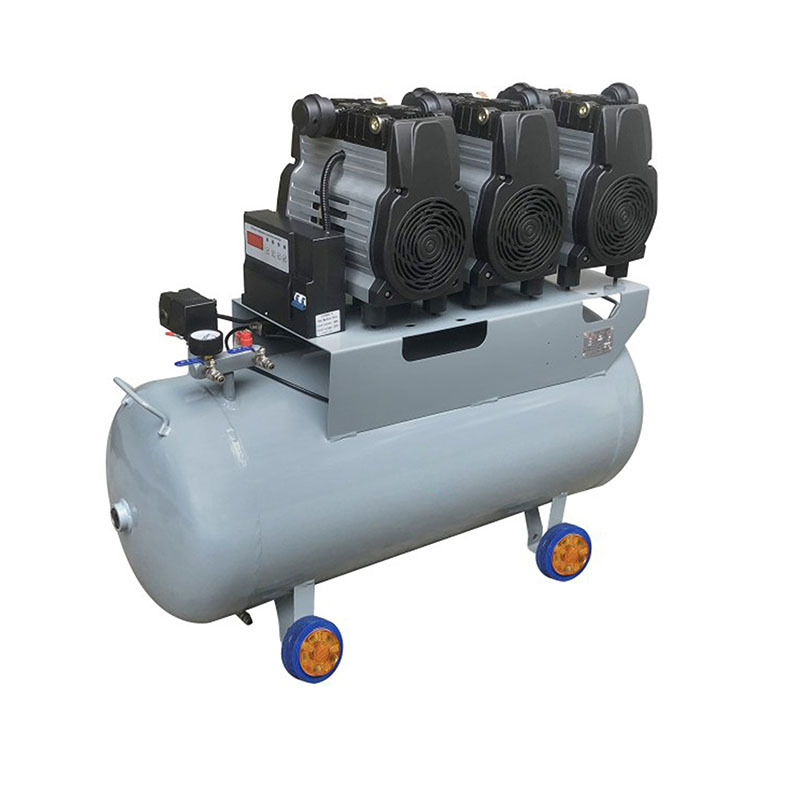

| 2406 | 5400W | 840L/min | 128L | 220VAC 50Hz | 76 dB |

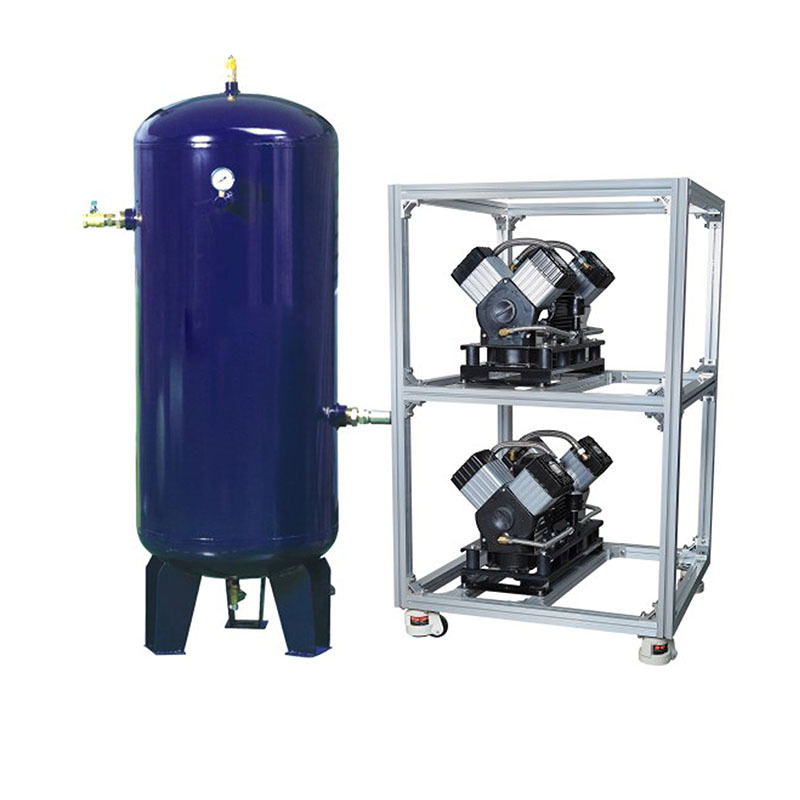

| 2407 | 6000W | 980L/min | 300L | 380VAC 50Hz | 78 dB |

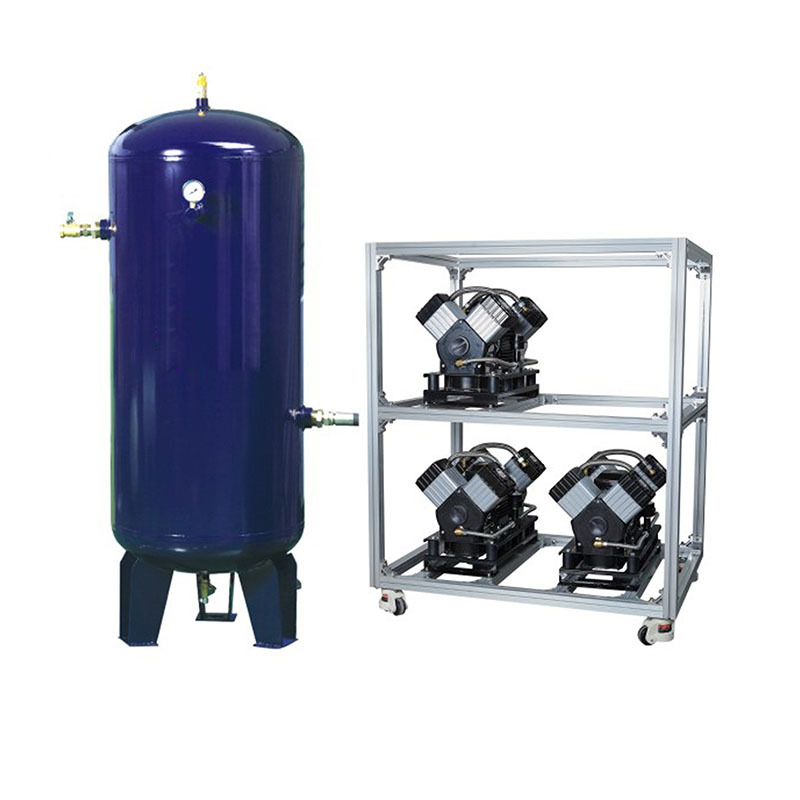

| 2408 | 9000W | 1470L/min | 300L | 380VAC 50Hz | 80 dB |
Specifications vary by model. Confirm air flow at the required operating pressure and the noise measurement conditions when selecting your compressor.
Choose the compressor according to the combined air demand of the equipment that will operate at the same time. The number of chairs or simulators alone does not determine the required capacity. Confirm the equipment specifications, expected usage and installation requirements before ordering.
Send the dental chair or simulator models, total quantity, expected simultaneous use, air supply requirements, local power supply and delivery destination. Include any requirements for filtration, drying or installation accessories so the quotation can specify the complete configuration.
